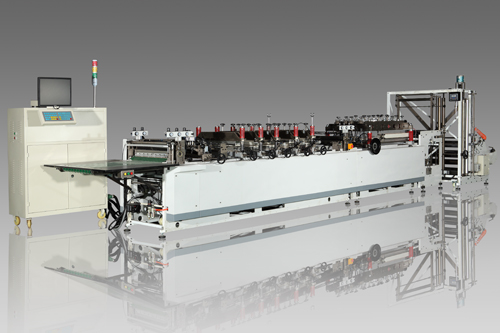

BYZD-600(Two Servo)High Speed Automatic Three Side Seal Pouch Making Machine.
USAGE: It is high speed machine for special making three side seal pouch with different kinds of laminated film.
>>General Structural Diagram (PDF documents)
| Technical Datas |
| Bagging Speed |
Max: 150parts/Min (According To Material & Operating) |
Production Lane |
1- 4 lanes |
| Film Size Range |
W=1200mm,Max:diameter 600mm |
| Pouch Size Range |
W=50mm-600mm L=60-300mm (L>300mm,working by multiplied feeding) |
| Unwinding Unit |
| Main web shaft |
Air shaft |
| Main web Stand |
Half Folded Station |
| Main web Brake |
Magnetic Brake (Mitsubishi Clutch Brake) |
| L. P. C |
Electric Vision Controller (photoelectric sensor) |
| Main Body |
| Horizontal Heating Unit |
3 Units (L=640mm W=90mm) |
| Horizontal Cooling Unit |
2 Units (L=640mm W=80mm) |
| Vertical Heating Unit |
5 Units (L=640mm W=60mm) |
| Vertical Cooling Unit |
5 Units (L=510mm W=60mm) |
| Control System |
Computer Control |
| Table Conveyor |
Motor control |
| Temperature Control |
16PCs |
| Cutter |
1set, Seal Bar (Horizontal /Vertical): 11pcs. Tools: 1set |
| Thermocouple |
Attaching Type |
| *with the development of management and technology , the datas will change without notice. |
|
